Gas Liquid Steam Waste Water Treatment Vortex Flow meter Electromagnetic Flow Meter

Description

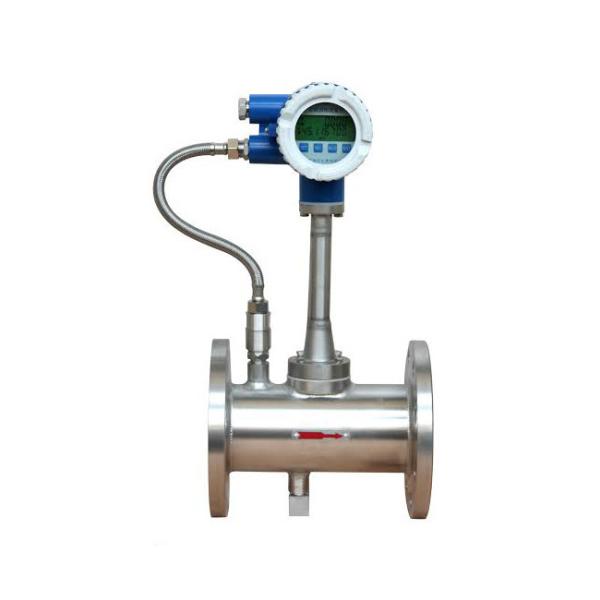

ZHYQ’s PT124B-503 vortex flowmeter is a kind of advanced speed flowmeter and has a wide range of applications. Flow metering, measurement and control of liquids, vapors and most gases.

Aplication

Widely used in Paper, sugar, various beverages, water supply and drainage, mining, environmental protection, water conservancy engineering, steel, petroleum, pharmaceutical, heating, water supply, hot steam, saturated steam, compressed air.

Feature

♦ With a sophisticated low-power LCD display, the local display shows instantaneous flow, cumulative flow, frequency, pressure, temperature, density, current, percentage, and more.
♦ The probe uses four piezoelectric ceramic technologies to effectively eliminate the influence of external vibration on the measurement
♦ No moving parts, no wear, no mechanical maintenance and long service life
♦ The probe and signal converter are universally interchangeable
♦ Split type signal converter can be used, the cable can be up to 10 meters long.
♦ Output 4-20mA current signal / pulse signal, or Modbus RS485 signal
♦ Two explosion-proof forms of intrinsic safety explosion-proof: Exia II CT6Ga; flameproof: Exd II CT6Gb
♦ With HART–Protocol communication protocol, Modbus RS485 interface.

Specification

Nominal diameter(mm)
Claming connection DN15～DN300 Flange connection DN15～DN500
Measuring medium
Gas, liquid, steam
Pressure(MPa)
1.6,2.5,4.0,6.3
Others are optional
Medium temp.
Standard temp.(-40 ～ +150)℃ medium temp.(-40 ～ +250)℃ high temp.(-40 ～ +350)℃
Material
SUS304 / SUS316/ SUS316L, others are optional
Accuray
1.0%FS
Repeatability
≤±0.33%
Range ratio
1:10 ～ 1:20
converter
Type
Intergrated type, split type, temp. & pressure compensation type
Power supply
12VDC/24VDC, battery
Display type
LCD display
Telecommunication
HART , Modbus RS485
Signal output
Three wires, 4-20mA two wires
Ex-proof grade
Intrinsically safe ex-proof Exia Ⅱ CT6FGa flameproof Exd Ⅱ CT6Gb
Protection
IP65,IP67,IP68
Electrical connection
M20×1.5,1/2NPT
Ambient condition
Temp.
(-30 ～ +60)℃
Humidity
5% ～ 90%
Air pressure
(86 ~～106)kPa
