Flexible Output High Temperature Pressure Gauge Install Easily High Reliability

    Buy cheap Flexible Output High Temperature Pressure Gauge Install Easily High Reliability from wholesalers

    Buy cheap Flexible Output High Temperature Pressure Gauge Install Easily High Reliability from wholesalers
    • Buy cheap Flexible Output High Temperature Pressure Gauge Install Easily High Reliability from wholesalers

    Flexible Output High Temperature Pressure Gauge Install Easily High Reliability

    Ask Lasest Price
    Brand Name : ZHYQ
    Model Number : PT124Y-615
    Certification : CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000 PCS / Week
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    Flexible Output High Temperature Pressure Gauge Install Easily High Reliability

    High Temperature Flexible Output Melt Pressure Gauge Install easily high reliability

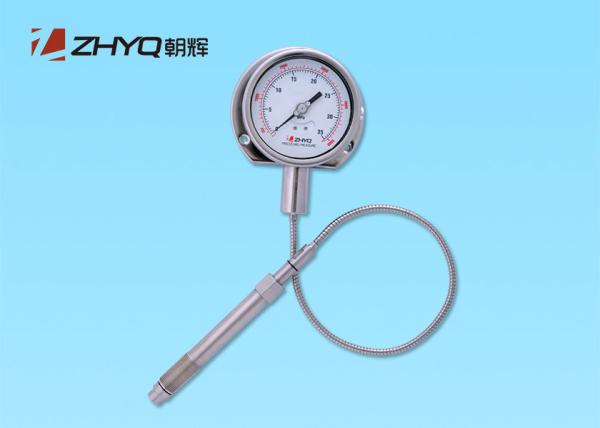

    PT124Y-615 adopts the original packaging machine stamen, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.
    Application
    Chemical fibre and filature
    Rubber & plastic machinery
    The equipment of high temperature steam
    Feature
    Direct local reading design
    Customer defined pressure gauge
    Install easily, high reliability
    Zero adjustment

    Specification

    Range0….6MPa to 0….150MPa
    Output0~5V; 0~10V; 4-20mA; 2mV/V; 3.33mV/V
    Accuracy±1.0%FS; ±1.5%FS
    Input Voltage24VDC (12~36)VDC; 10VDC
    ConfigurationBourdon tube
    Over Pressure1.5×FS
    Max Diaphragm Temperature350℃
    Dial Diameter100mm
    Flexible Length0.5…5M (Optional)
    Electric connectorDIN43650, 5PIN ,6PIN
    Process Connector1/2″-20UNF, M14×1.5, M18×1.5(Optional)

    Ordering Guide

    ModelRangeOutputSnout&CapillaryProcess connectionElectric connectionOther requirement
    PT124Y-615------------------
    Example: PT124Y-615-350Bar-3.33mV/V-6″/30”-1/2-20UNF-DIN43650-A
